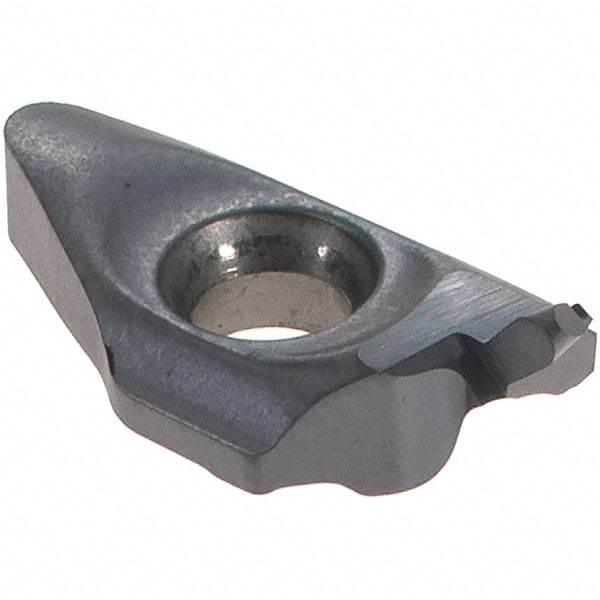

Iscar - 8100050MIUR Grade IC908, 1mm Cutting Width Carbide Grooving Insert - 1.1mm Max Depth of Cut, Right Hand, 0.5mm Corner Radius, TiAlN Finish
Item #: 37346657
Brand: Iscar
Model #: 6405188
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MIUR |
| Insert Size | 8100050 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0433 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Undercutting |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Series | MinCut |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
