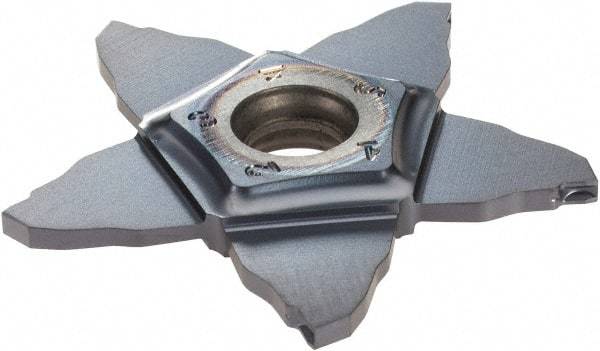

Iscar - PENTA34N150 IC908 Grade, 0.0591" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0059" Cnr Rad, TiAlN Coated
Item #: 37345345
Brand: Iscar
Model #: 6003647
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | 34N150 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | PentaCut |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0059 |
| Corner Radius (mm) | 0.15 |
| Overall Width (mm) | 1.50 |
| Overall Width (Decimal Inch) | 0.0591 |
