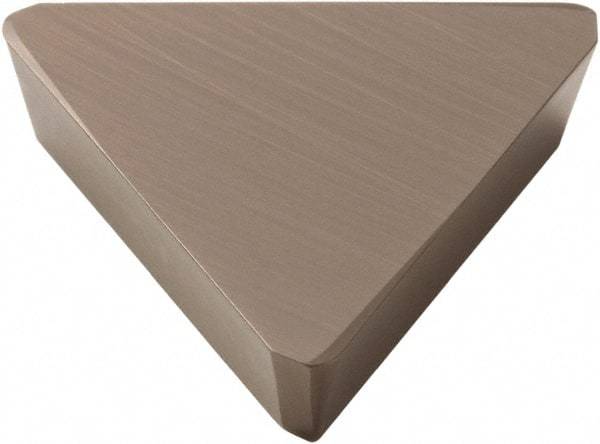

Seco - TPKN1603 MD12 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.1252" Thick, 1/2" Inscribed Circle
Item #: 37306271
Brand: Seco
Model #: 23989
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPKN |
| Insert Size | 1603 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1252 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Chipbreaker | MD12 |
| Manufacturers Catalog Number | TPKN 32PDTR-MD12 |
