US Motors - 3 hp, Totally Enclosed Fan Cooled, No Thermal Protection, 3,450 RPM, 208-230/460 Volt, 60 Hz, Polyphase Motor - Size 145TC Frame, C-Face Mount, 1 Speed, Ball Bearings, 8.8-7.3/3.6 Full Load Amps, F Class Insulation - USA Tool & Supply

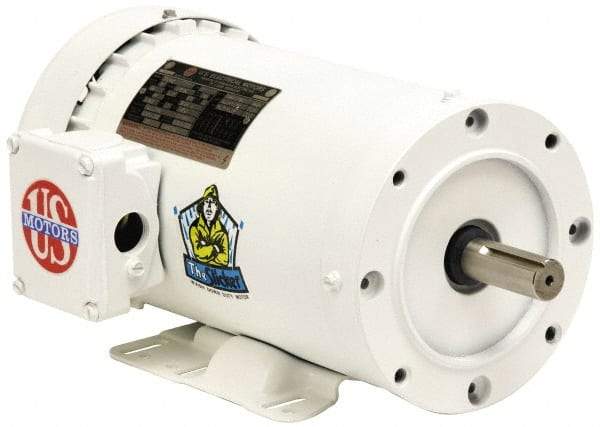

US Motors - 3 hp, Totally Enclosed Fan Cooled, No Thermal Protection, 3,450 RPM, 208-230/460 Volt, 60 Hz, Polyphase Motor - Size 145TC Frame, C-Face Mount, 1 Speed, Ball Bearings, 8.8-7.3/3.6 Full Load Amps, F Class Insulation


Item #: 36868644
Brand: US Motors
Model #: WD3E1A14C
Exact Tooling IR#: 04

Product Specifications
Motor Type Polyphase
Type of Enclosure Totally Enclosed Fan Cooled
Horsepower 3
Thermal Protection Rating None
Name Plate RPMs 3450
Voltage 208-230/460
Frequency Hz 60
Frame Size 145TC
Mount Type C-Face
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 8.8-7.3/3.6
Insulation Class F
Service Factor Rating 1.15
PSC Code 6105
$2,158.12
