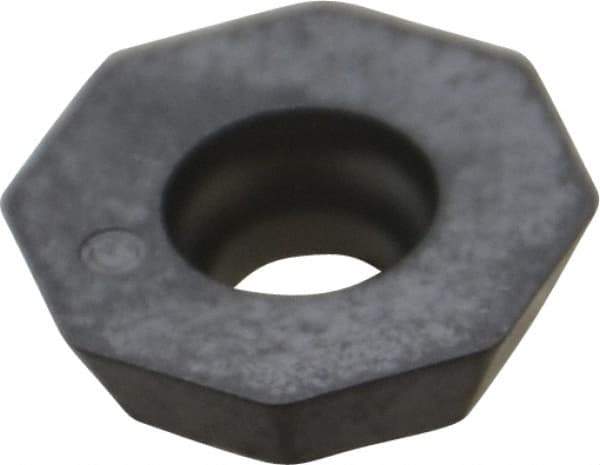

Ingersoll Cutting Tools - OELB060416 Grade IN2030 Carbide Milling Insert - TiAlN Finish, 0.187" Thick, 0.629" Inscribed Circle, 1/16" Corner Radius
Item #: 36852895
Brand: Ingersoll Cutting Tools
Model #: 5803796
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OELB |
| Insert Size | 060416 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | IN2030 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.6290 |
| Inscribed Circle (Decimal Inch) | 0.6290 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Relief Angle | 20.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| ISO Number | OELB060416N |
