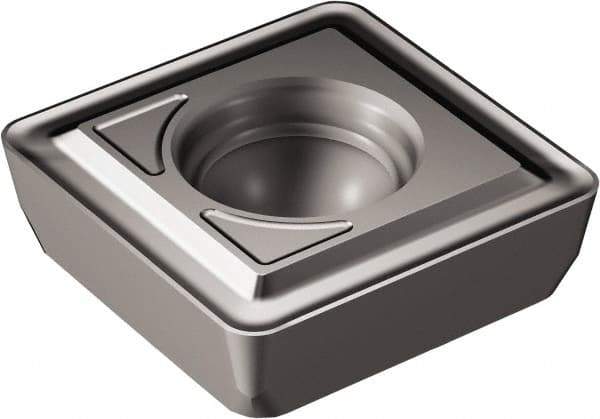

Sandvik Coromant - 88006P LM Grade H13A Carbide Indexable Drill Insert - Uncoated, Square, 10.65mm Inscribed Circle
Item #: 36784742
Brand: Sandvik Coromant
Model #: 5765727
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 06P |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Inscribed Circle (mm) | 10.65 |
| Inscribed Circle (Decimal Inch) | 0.4193 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Width (Decimal Inch) | 0.4193 |
| Width (mm) | 10.65 |
| Length (mm) | 10.65 |
| Length (Decimal Inch) | 0.4193 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Chipbreaker | LM |
