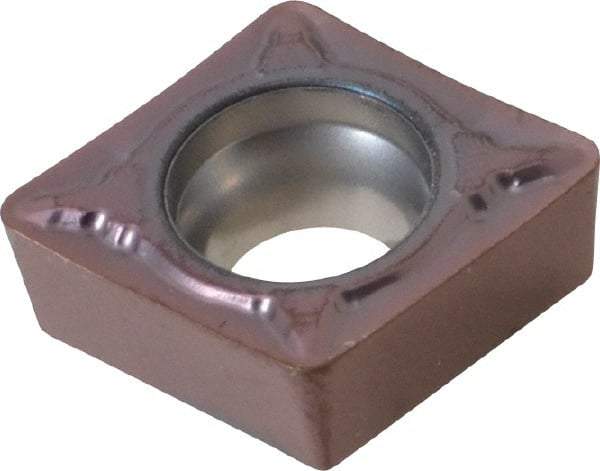

Seco - CCMT32.52 F1 Grade TH1000 Carbide Turning Insert - TiAlSiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 36762946
Brand: Seco
Model #: 63960
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | TH1000 |
| Coating | TiAlSiN |
| Material Grade | C8 |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 7 |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | P; M; K |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
