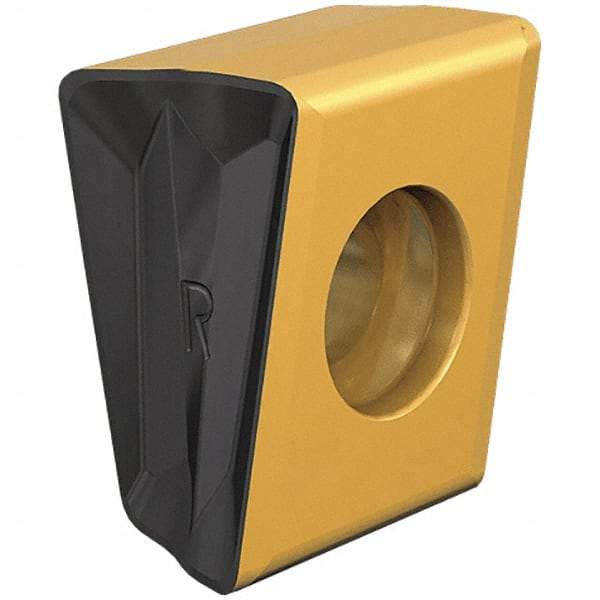

Iscar - T490 LNAT1306 W Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 13.1mm Thick, 0.5mm Corner Radius
Item #: 36584076
Brand: Iscar
Model #: 5667702
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNAT |
| Insert Size | 1306 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.65 |
| Width (Decimal Inch) | 0.2620 |
| Length (mm) | 14.20 |
| Length (Decimal Inch) | 0.5590 |
| Thickness (mm) | 13.10 |
| Thickness (Decimal Inch) | 0.5160 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Neutral |
| Chipbreaker | W |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNAT 1306 PN-W |
| ISO Number | T490 LNAT 1306 PN-W |
| ANSI Number | T490 LNAT 1306 PN-W |
