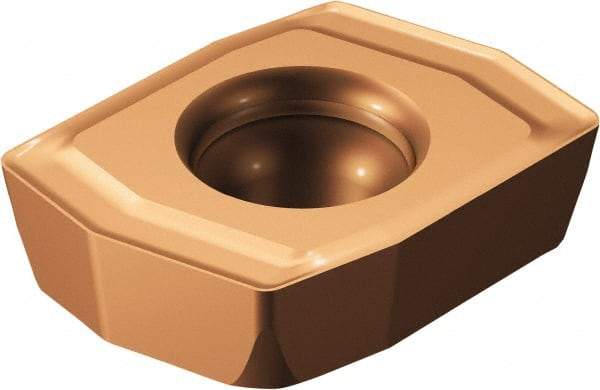

Sandvik Coromant - 880010203 LM Grade 1144 Carbide Indexable Drill Insert - TiAlN/AlCr2O3 Finish, Parallelogram, 4.8mm Inscribed Circle
Item #: 36562916
Brand: Sandvik Coromant
Model #: 6227409
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 010203 |
| Material | Carbide |
| Manufacturer's Grade | 1144 |
| Inscribed Circle (mm) | 4.80 |
| Inscribed Circle (Decimal Inch) | 0.1890 |
| Thickness (mm) | 2.20 |
| Thickness (Decimal Inch) | 0.0866 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1890 |
| Width (mm) | 4.80 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Coating | TiAlN/AlCr2O3 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | LM |
