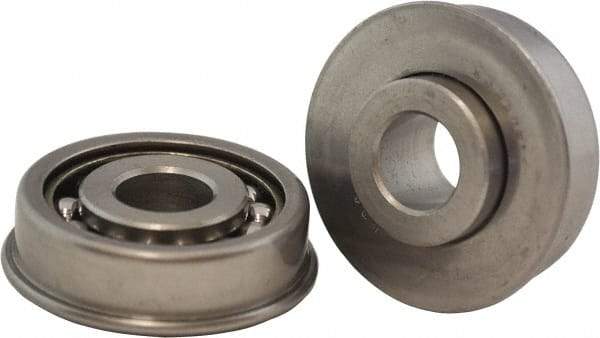

USDI - 1 Row, 1-3/4" OD, 5/8" Bore Diam, Round Open Conveyor Roller Bearing - 195 Lb Capacity, 550 Max RPM, with Flange, Steel with Steel Housing
Item #: 36559938
Brand: USDI
Model #: AF4056
Exact Tooling IR#: 04
Features and Benefits
Conveyor roller bearings are designed to accommodate loads where high levels of exposure to contamination are present. They are economical and are used in conveyor systems.
Open bearings are designed with an extended inner ring or flange that can improve shaft support and eliminate the need for location spacers
Radial ball bearings with a flange axially locates the bearing in the housing and eliminates the need for housing shoulders or snap ring.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Conveyor Roller Bearing |
| Style | Open |
| Bore Diameter (Inch) | 5/8 |
| Outside Diameter (Decimal Inch) | 1.7500 |
| Flange Type | With Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Housing Material | Steel |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 195 |
| Dynamic Load Capacity (Lb.) | 195 |
| Ball Material | Steel |
| Maximum RPM | 550 |
