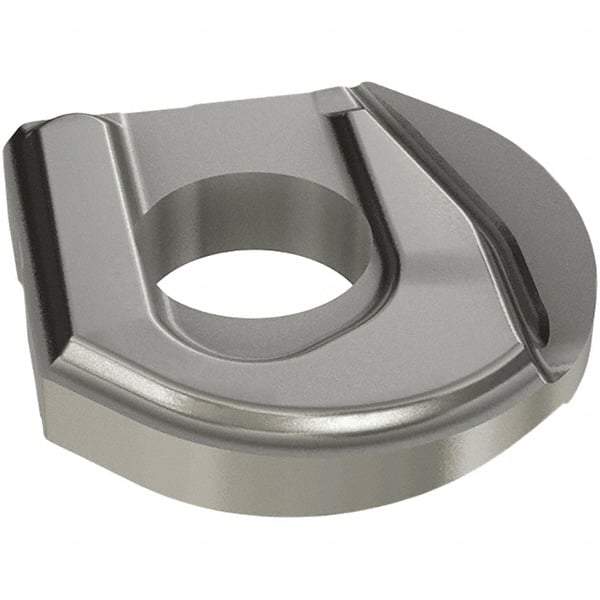

Iscar - HBFD250 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 5.4mm Thick, 12.5mm Corner Radius
Item #: 36427813
Brand: Iscar
Model #: 5604379
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HBF |
| Insert Size | D250 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Thickness (mm) | 5.40 |
| Corner Radius (mm) | 12.50 |
| Relief Angle | 5.000 |
| Coating Process | PVD |
| Shape | Hexagon |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 17.00 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | HBF D250-QF |
| ISO Number | HBF D250-QF |
| ANSI Number | HBF D250-QF |
