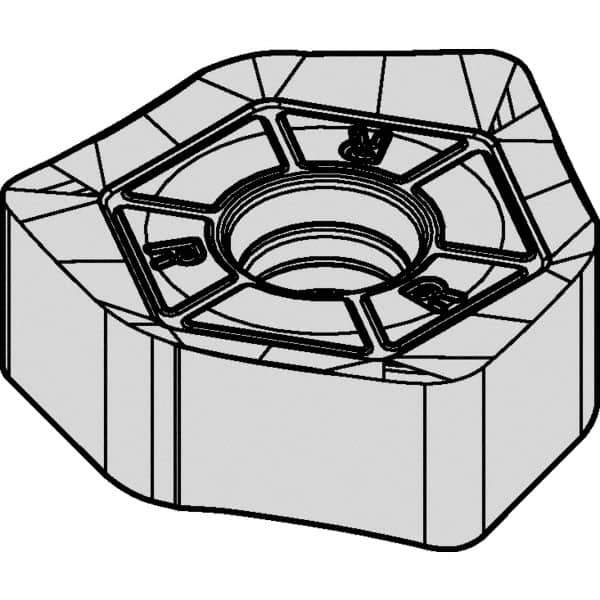

Kennametal - XNGJ0905AN Grade KC410 Carbide Milling Insert - TiB2 Finish, 1/4" Thick, 5/8" Inscribed Circle, 1.6mm Corner Radius
Item #: 36404770
Brand: Kennametal
Model #: 3849319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNGJ |
| Insert Size | 0905AN |
| Material | Carbide |
| Manufacturer's Grade | KC410 |
| Coating | TiB2 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Shape | Hexagon |
| ISO Number | XNGJ0905ANFNLDJ3W |
