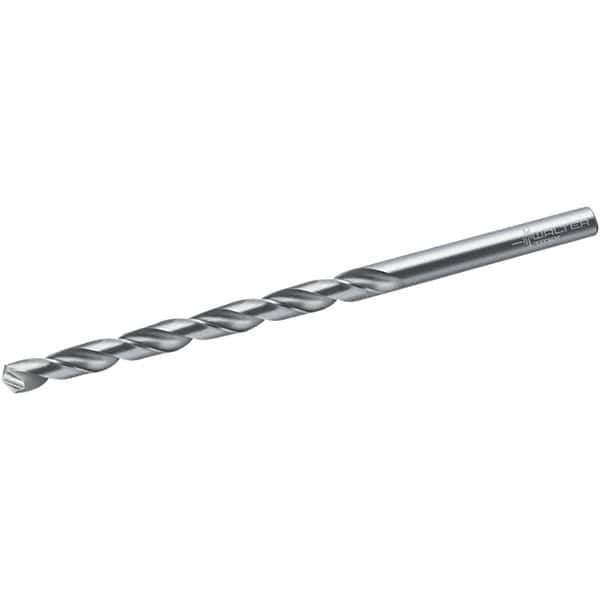

Walter-Titex - 8.8mm, 130° Point, Spiral Flute, Cobalt Taper Length Drill Bit - Bright Finish, 115mm Flute Length, 175mm OAL, Series A1544
Item #: 36366029
Brand: Walter-Titex
Model #: 5062138
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 8.80 |
| Drill Bit Size (Decimal Inch) | 0.3465 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Conical+C |
| Flute Length (Decimal Inch) | 4.5276 |
| Flute Length (mm) | 115.00 |
| Overall Length (mm) | 175.00 |
| Overall Length (Decimal Inch) | 6.8898 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 8.80 |
| Shank Diameter (Decimal Inch) | 0.3465 |
| Flute Length x Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 100.00 |
| Maximum Drilling Depth (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 60 |
| Shank Length (Decimal Inch) | 2.3622 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 340 |
| Material Grade | M35 |
| Series/List | A1544 |
