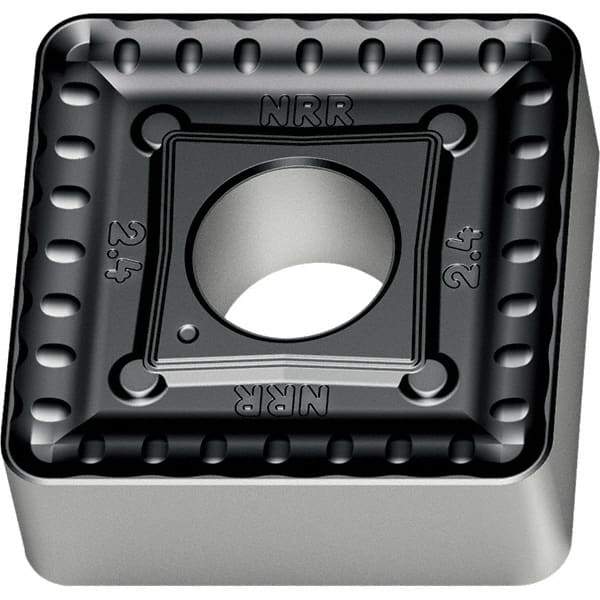

Walter - SNMM643 NRR Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 36323392
Brand: Walter
Model #: 6160342
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 643 |
| Material | Carbide |
| Length (mm) | 19.05 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P30 |
| Chip Breaker | NRR |
| ISO Number | SNMM190612-NRR |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMM643-NRR |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
