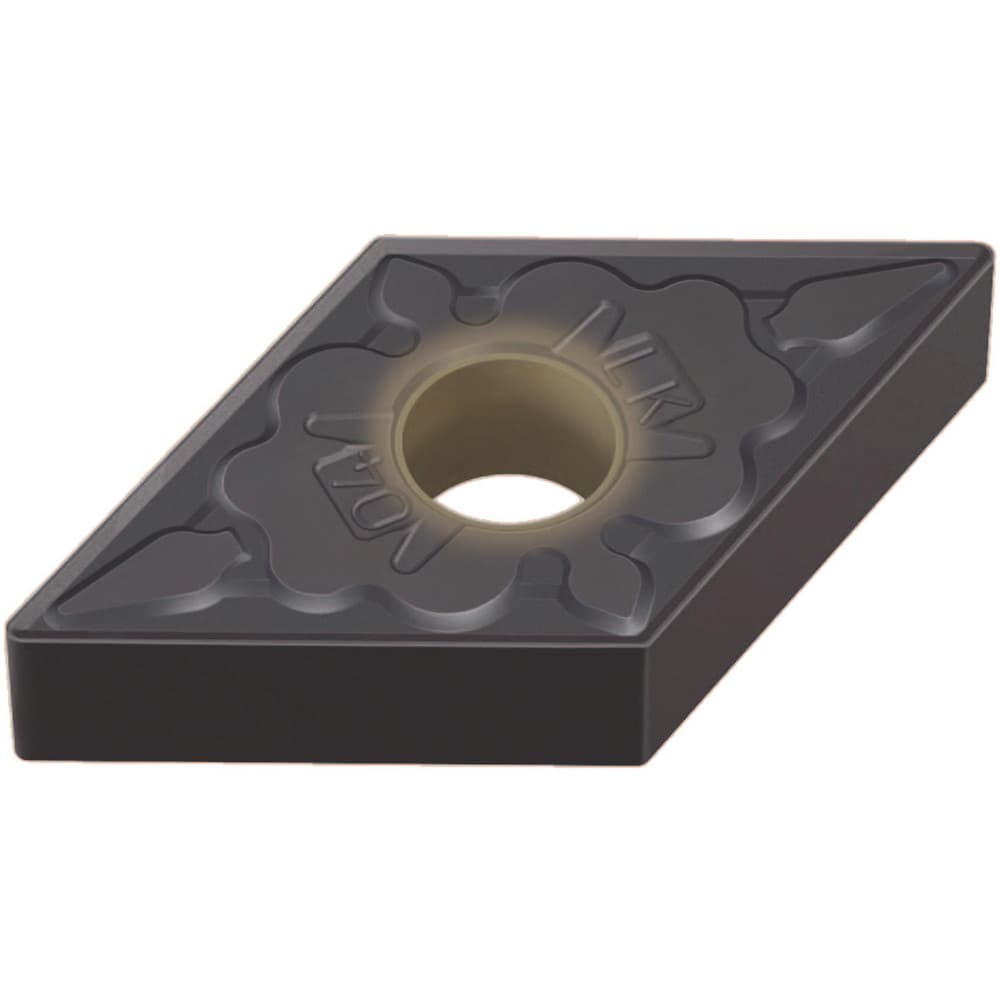

Turning Insert: DNMG431LK MC5115, Carbide
Item #: 05531868
Brand: Mitsubishi
Model #: 10650899
Product Specifications
| ANSI Insert Code | DNMG |
| ISO Insert Code | DNMG |
| Relief Angle | 0.000 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.00 |
| Manufacturer Grade | MC5115 |
| Coating/Finish | CVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Coating Classification | CVD |
| Chip Breaker | LK |
| Rake Angle | 0 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 5 |
