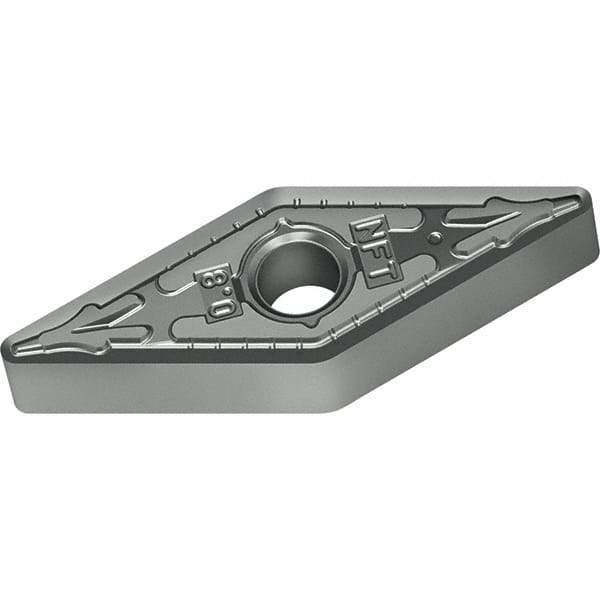

Walter - VNGG333 NFT Grade WS10 Carbide Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 36322360
Brand: Walter
Model #: 6249340
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNGG |
| Insert Size | 333 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | WS10 |
| Coating | Uncoated |
| Material Grade | S10 |
| Chip Breaker | NFT |
| ISO Number | VNGG160412-NFT |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | VNGG160412-NFT |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
