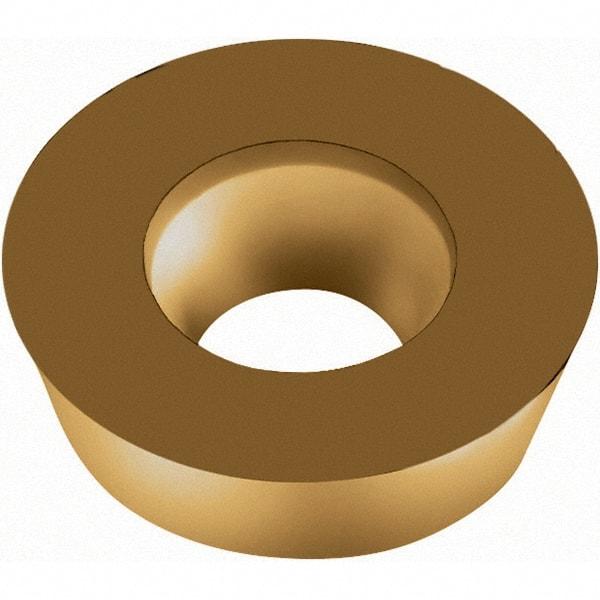

Walter - RDHX1604M0 A27 Grade WKP25S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.1862" Thick, 16mm Inscribed Circle
Item #: 36293447
Brand: Walter
Model #: 6071451
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDHX |
| Insert Size | 1604M0 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Coating | TiCN/Al2O3/TiCN |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.1862 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | A27 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | RDHX1604M0T-A27 |
