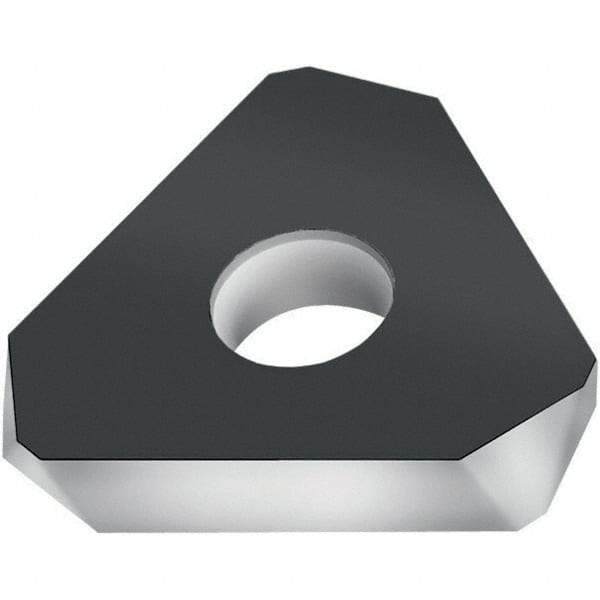

Walter - P23522R Grade WKP35S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.177" Thick, 18.01mm Inscribed Circle
Item #: 36293132
Brand: Walter
Model #: 5918906
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P2352 |
| Insert Size | 2R |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3/TiCN |
| Inscribed Circle (mm) | 18.01 |
| Inscribed Circle (Decimal Inch) | 0.7090 |
| Thickness (Decimal Inch) | 0.1770 |
| Rake | Negative |
| Coating Process | CVD |
| Shape | Triangle |
| Manufacturers Catalog Number | P2352-2R |
