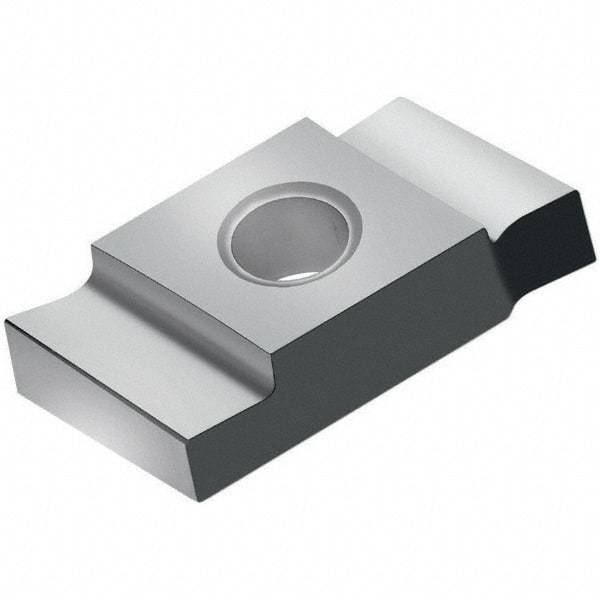

Walter - P202001.1 Grade WKP35S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.0925" Thick
Item #: 36292951
Brand: Walter
Model #: 5918446
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P20200 |
| Insert Size | 1.1 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3/TiCN |
| Width (Decimal Inch) | 0.2165 |
| Length (Decimal Inch) | 0.3543 |
| Thickness (Decimal Inch) | 0.0925 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Parallelogram |
| Manufacturers Catalog Number | P20200-1.1 |
