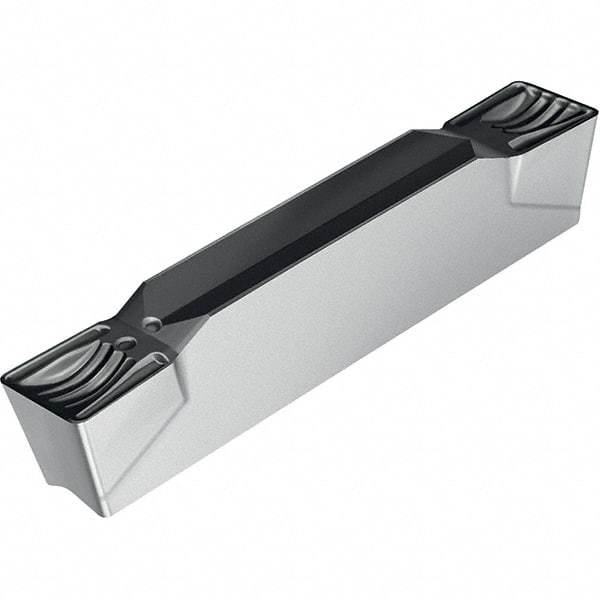

Walter - 3E400N04GX UF4 Grade WSM43S, 4mm Cutting Width Carbide Grooving Insert - 2.8mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiAlN/Al2O3/Al Finish
Item #: 36288793
Brand: Walter
Model #: 6152472
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 3E400N04 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Material Grade | S45/M45/P45 |
| Manufacturer's Grade | WSM43S |
| Coating | TiAlN/Al2O3/Al |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | UF4 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Facing; Grooving; Turning |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9449 |
| Series | Tiger-tec |
| ISO Number | GX24-3E400N04-UF4 |
| Manufacturers Catalog Number | GX24-3E400N04-UF4 |
