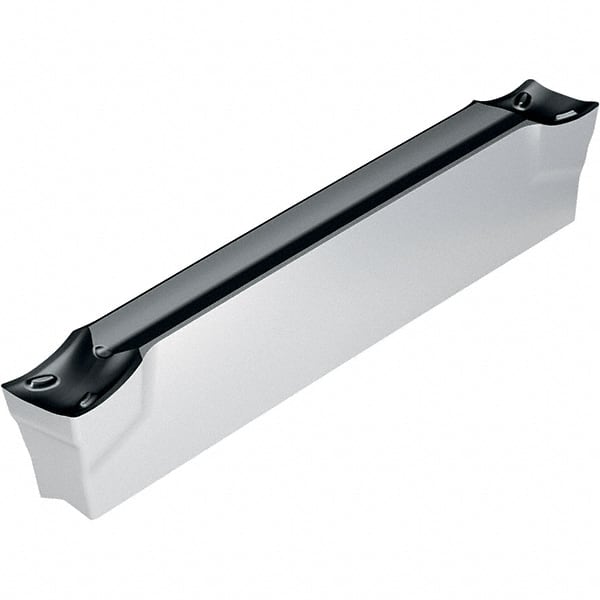

Walter - GX161E200N02CF6 WSM43S Carbide Grooving Insert
Item #: 36288298
Brand: Walter
Model #: 6089960
Product Specifications
| Insert Style | GX |
| Insert Size | 1E200N02 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | S45/M45/P45 |
| Manufacturer's Grade | WSM43S |
| Coating | TiAlN/Al2O3/Al |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | CF6 |
| Multi-Use Application | Cut-Off; Grooving |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 16.60 |
| Overall Length (Decimal Inch) | 0.6535 |
| Series | Tiger-tec |
| ISO Number | GX16-1E200N02-CF6 |
| Manufacturers Catalog Number | GX16-1E200N02-CF6 |
