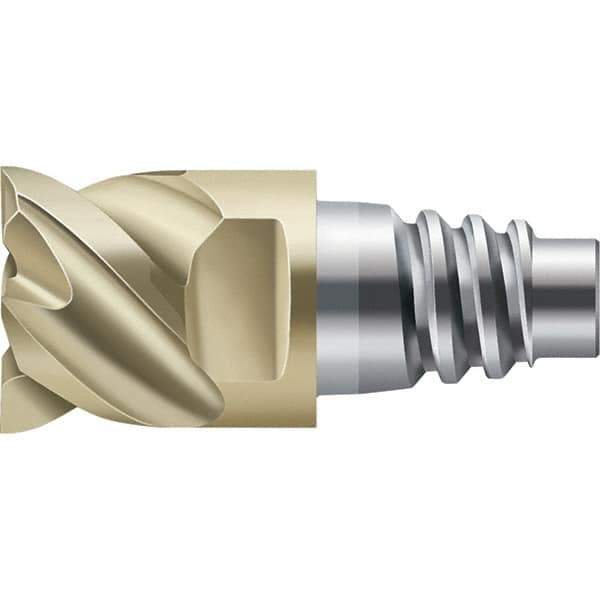

Walter-Prototyp - H4E Carbide End Milling Tip Insert - TiAlN/ZrN Finish, 4 Flutes, 10mm Cutting Diam, 4.75mm Depth of Cut, 12.4mm Extension
Item #: 36287027
Brand: Walter-Prototyp
Model #: 6073506
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/ZrN is a high performance multilayer specifically developed for machining steel. It's chemically resistant to emulsions and oils and is extremely effective in preventing built up edges.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protomax ST |
| Milling Tip Style | H4E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 4.75 |
| Depth of Cut (Decimal Inch) | 0.1870 |
| Number of Flutes | 4 |
| Coating | TiAlN/ZrN |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Coating Process | PVD |
| Extension From Holder (mm) | 12.40 |
| Extension From Holder (Decimal Inch) | 0.4882 |
| Style | H4E34217 |
