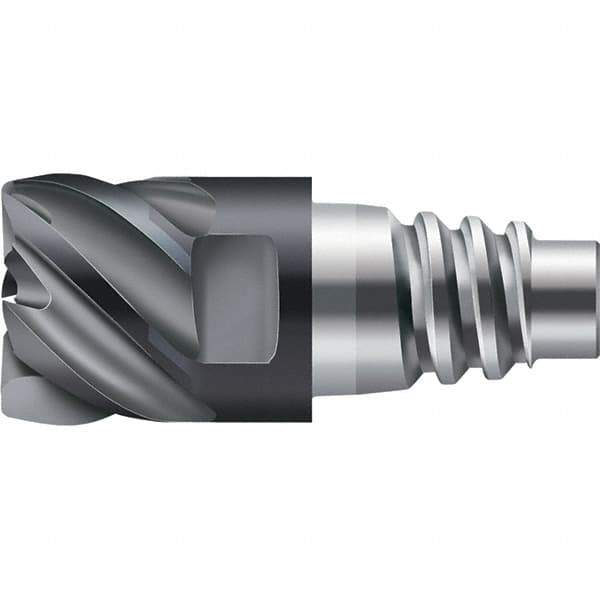

Walter-Prototyp - AH3E Carbide End Milling Tip Insert - TiAlN Finish, 6 Flutes, 12.7mm Cutting Diam, 7.01mm Depth of Cut, 14.61mm Extension
Item #: 36286375
Brand: Walter-Prototyp
Model #: 5831977
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar N 50 |
| Milling Tip Style | AH3E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.70 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 7.01 |
| Depth of Cut (Decimal Inch) | 0.2760 |
| Number of Flutes | 6 |
| Coating | TiAlN |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Coating Process | PVD |
| Extension From Holder (mm) | 14.61 |
| Extension From Holder (Decimal Inch) | 0.5750 |
| Style | AH3E21138 |
