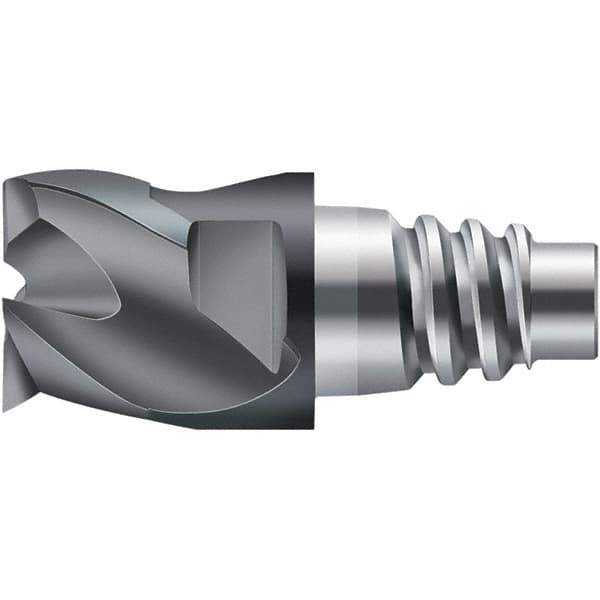

Walter-Prototyp - H3E Carbide End Milling Tip Insert - TiAlN Finish, 3 Flutes, 16mm Cutting Diam, 8.5mm Depth of Cut, 18.7mm Extension
Item #: 36286011
Brand: Walter-Prototyp
Model #: 5627150
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar N 45 |
| Milling Tip Style | H3E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 8.50 |
| Depth of Cut (Decimal Inch) | 0.3346 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Coating Process | PVD |
| Extension From Holder (mm) | 18.70 |
| Extension From Holder (Decimal Inch) | 0.7362 |
| Style | H3E29148 |
