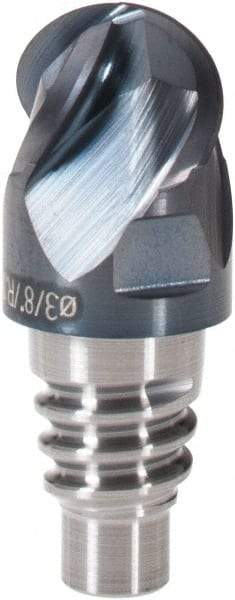

Walter-Prototyp - AH8E Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 4 Flutes, 9.53mm Cutting Diam, 5.31mm Depth of Cut, 12.4mm Extension, 3/16" Cnr Rad
Item #: 36271484
Brand: Walter-Prototyp
Model #: 5832143
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar N 40 |
| Milling Tip Style | AH8E |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 9.53 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 5.31 |
| Depth of Cut (Decimal Inch) | 0.2090 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.1880 |
| Coating Process | PVD |
| Extension From Holder (mm) | 12.40 |
| Extension From Holder (Decimal Inch) | 0.4880 |
| Style | AH8E11118 |
