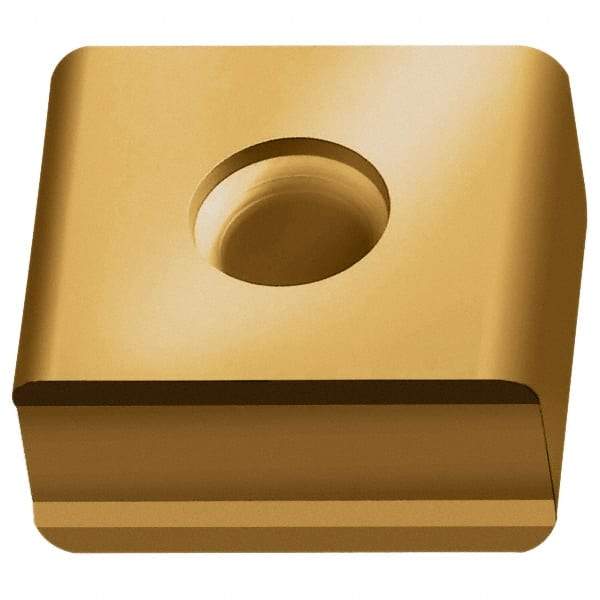

Walter - LNMU201012 F27T Grade WKP25S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.3937" Thick, 0.047" Corner Radius
Item #: 36268449
Brand: Walter
Model #: 6070968
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMU |
| Insert Size | 201012 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Coating | TiCN/Al2O3/TiCN |
| Width (Decimal Inch) | 0.6299 |
| Length (Decimal Inch) | 0.7874 |
| Thickness (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | CVD |
| Shape | Rectangle |
| Chipbreaker | F27T |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | LNMU201012T-F27T |
