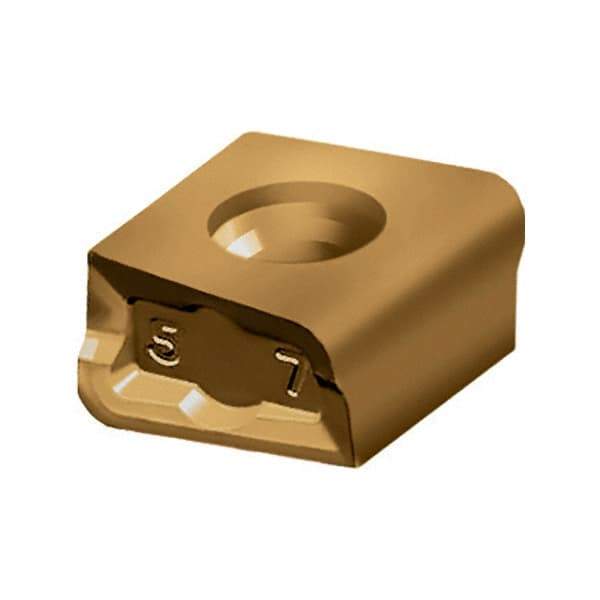

Walter - LNMU160812 F57T Grade WKP25S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.315" Thick, 1.2mm Corner Radius
Item #: 36268340
Brand: Walter
Model #: 6072573
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMU |
| Insert Size | 160812 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Coating | TiCN/Al2O3/TiCN |
| Width (Decimal Inch) | 0.6299 |
| Length (Decimal Inch) | 0.6654 |
| Thickness (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Coating Process | CVD |
| Shape | Rectangle |
| Chipbreaker | F57T |
| Manufacturers Catalog Number | LNMU160812-F57T |
