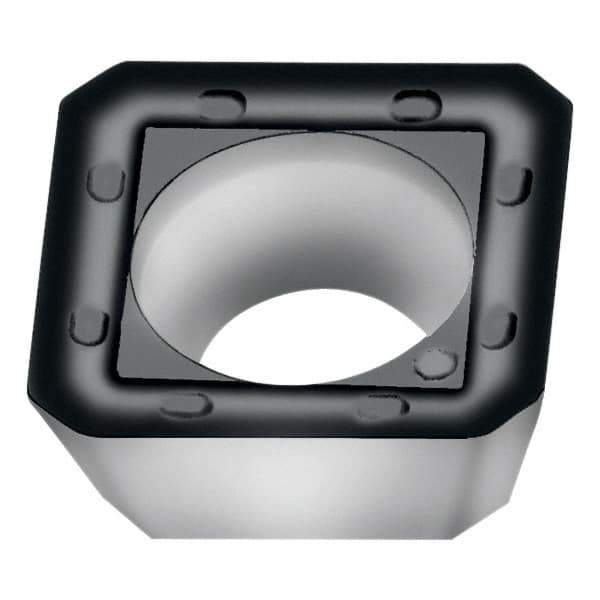

Walter - SDGT09T3 F57 Grade WKP35S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.1563" Thick, 3/8" Inscribed Circle, 0.3mm Corner Radius
Item #: 36267573
Brand: Walter
Model #: 5917466
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDGT |
| Insert Size | 09T3 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3/TiCN |
| Length (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Manufacturers Catalog Number | SDGT09T3AEN-F57 |
