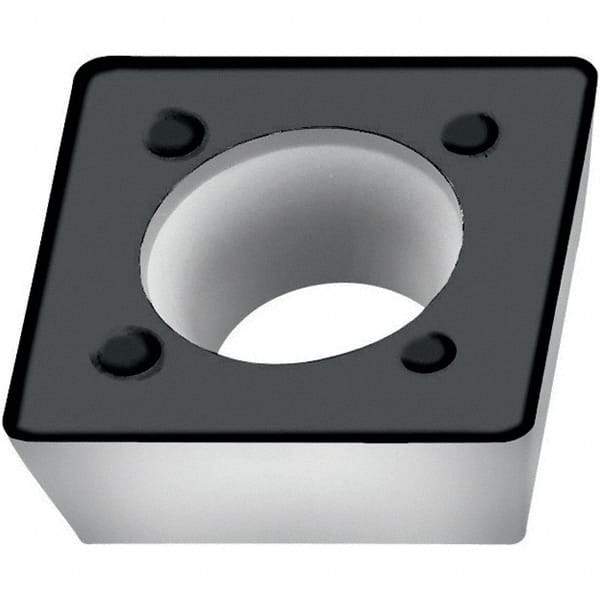

Walter - SPMW120408 A27 Grade WKP35S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.1874" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 36267409
Brand: Walter
Model #: 5917927
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMW |
| Insert Size | 120408 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3/TiCN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | A27 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | SPMW120408T-A27 |
