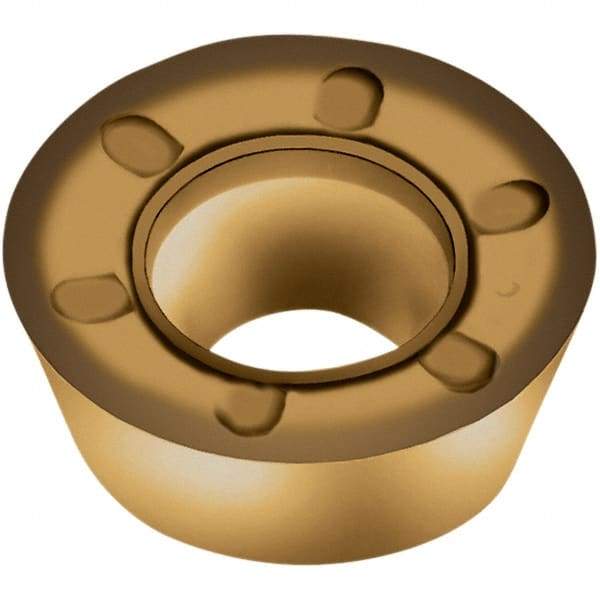

Walter - RDMT1605M0 D57 Grade WSM35S Carbide Milling Insert - TiAlN/Al2O3/Al Finish, 0.2189" Thick, 16mm Inscribed Circle
Item #: 36266435
Brand: Walter
Model #: 6161471
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDMT |
| Insert Size | 1605M0 |
| Material | Carbide |
| Material Grade | S35/M35 |
| Manufacturer's Grade | WSM35S |
| Coating | TiAlN/Al2O3/Al |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | D57 |
| Manufacturers Catalog Number | RDMT1605M0-D57 |
