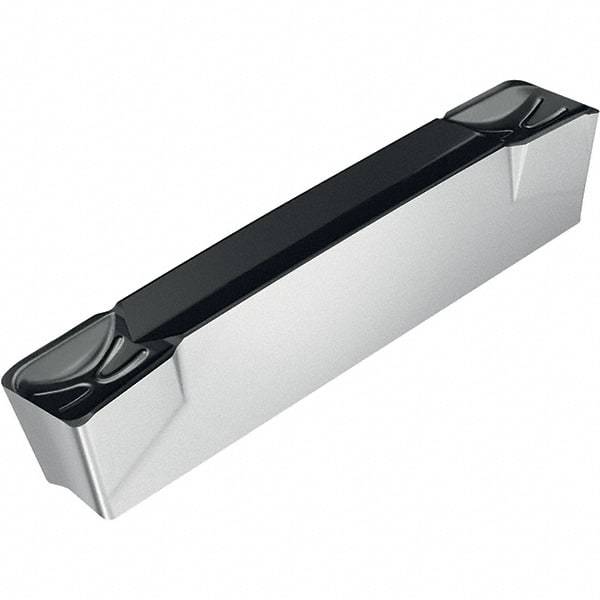

Walter - 3E500N04GX GD6 Grade WSM23S, 5mm Cutting Width Carbide Grooving Insert - Neutral, 0.4mm Corner Radius, TiAlN/Al2O3/ZrCN Finish
Item #: 36261758
Brand: Walter
Model #: 6167377
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 3E500N04 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Material Grade | M20/S20/P20 |
| Manufacturer's Grade | WSM23S |
| Coating | TiAlN/Al2O3/ZrCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | GD6 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9449 |
| Series | Tiger-tec |
| ISO Number | GX24-3E500N04-GD6 |
| Manufacturers Catalog Number | GX24-3E500N04-GD6 |
