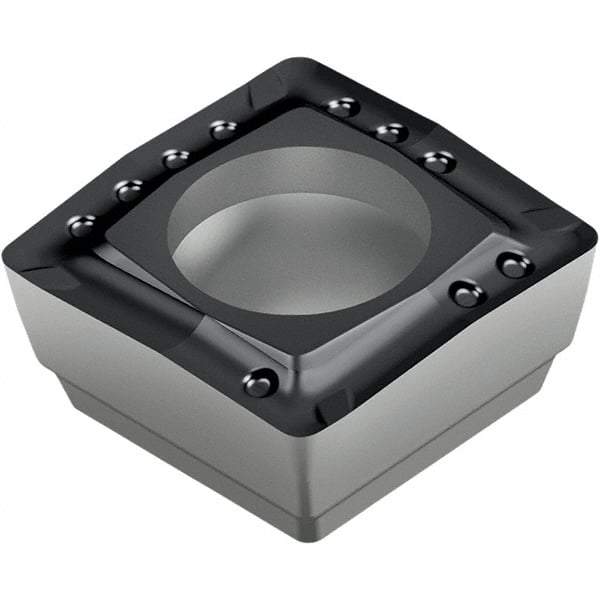

Walter - P4848 A57 Grade WKP25S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 16.5mm Inscribed Circle
Item #: 36261162
Brand: Walter
Model #: 6171450
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 8 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Inscribed Circle (mm) | 16.50 |
| Inscribed Circle (Decimal Inch) | 0.6496 |
| Thickness (mm) | 5.53 |
| Thickness (Decimal Inch) | 0.2177 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Shape | Square |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | A57 |
