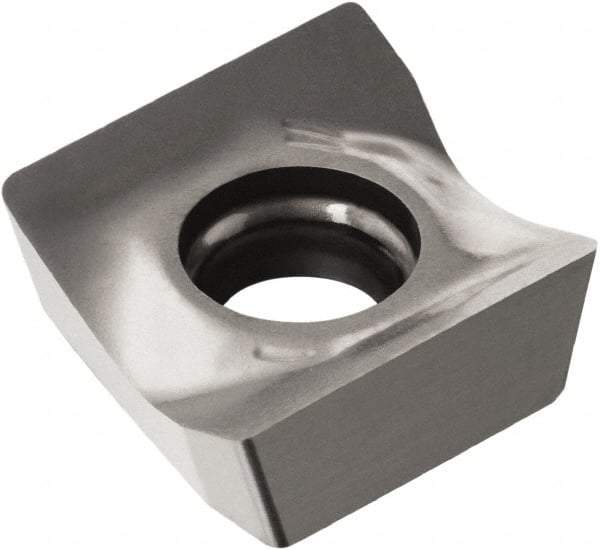

Sandvik Coromant - R590110504 NL Grade H10 Carbide Milling Insert - Uncoated, 5mm Thick, 11.5mm Inscribed Circle, 0.4mm Corner Radius
Item #: 36028587
Brand: Sandvik Coromant
Model #: 5747652
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R590 |
| Insert Size | 110504 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Length (mm) | 11.00 |
| Inscribed Circle (mm) | 11.50 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Proprietary |
| Insert Hand | Right Hand |
| Chipbreaker | NL |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R590-110504H-NL H10 |
