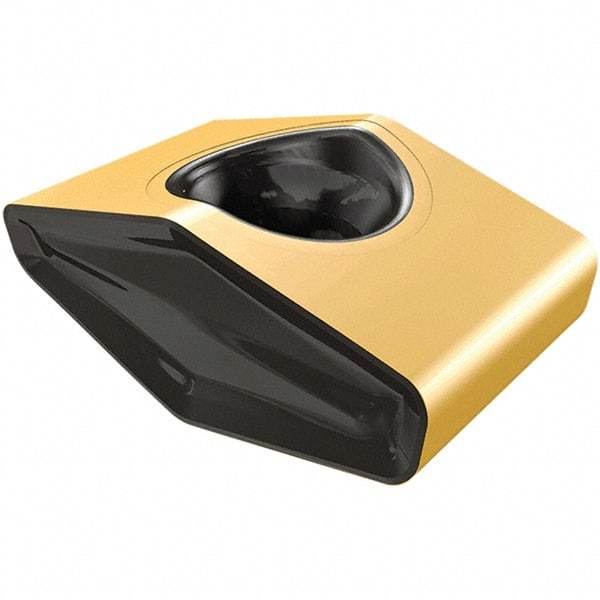

Iscar - T490 LNMT080412 PNR Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 6.87mm Thick, 1.2mm Corner Radius
Item #: 35988609
Brand: Iscar
Model #: 5667963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 080412 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 4.24 |
| Width (Decimal Inch) | 0.1670 |
| Length (mm) | 8.59 |
| Length (Decimal Inch) | 0.3380 |
| Thickness (mm) | 6.87 |
| Thickness (Decimal Inch) | 0.2700 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | PNR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNMT 080412PNR |
| ISO Number | T490 LNMT 080412PNR |
| ANSI Number | T490 LNMT 080412PNR |
