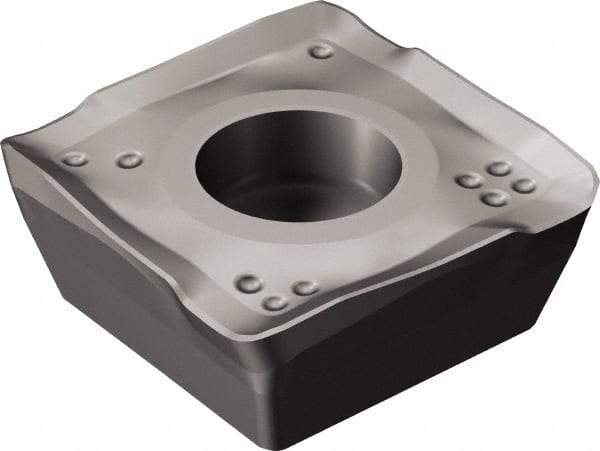

Sandvik Coromant - 490R140408 PM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 3.9mm Thick, 13.8mm Inscribed Circle
Item #: 35985209
Brand: Sandvik Coromant
Model #: 6971893
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 140408 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 13.80 |
| Inscribed Circle (Decimal Inch) | 0.5433 |
| Thickness (mm) | 3.90 |
| Thickness (Decimal Inch) | 0.1535 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 16.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Rounded |
| ISO Number | 490R-140408M-PM 1130 |
