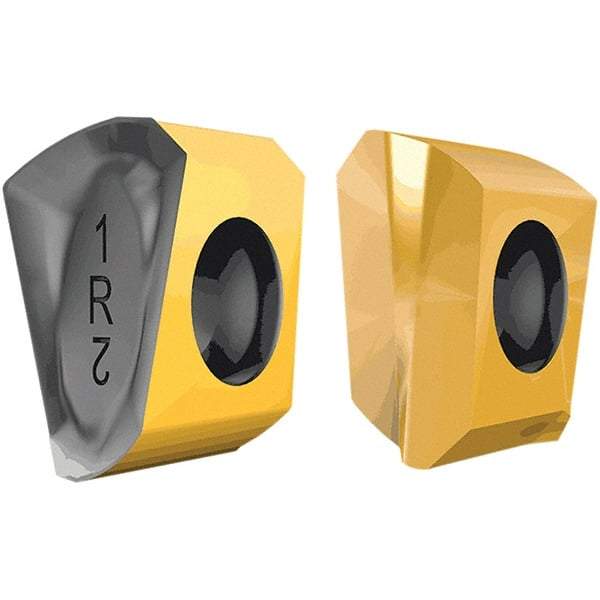

Iscar - T490 LNMT1306 FF Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 11.56mm Thick
Item #: 35775303
Brand: Iscar
Model #: 5668308
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 1306 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.65 |
| Width (Decimal Inch) | 0.2620 |
| Length (mm) | 13.68 |
| Length (Decimal Inch) | 0.5390 |
| Thickness (mm) | 11.56 |
| Thickness (Decimal Inch) | 0.4550 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Right Hand |
| Chipbreaker | FF |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNMT 1306PNR-FF |
| ISO Number | T490 LNMT 1306PNR-FF |
| ANSI Number | T490 LNMT 1306PNR-FF |
