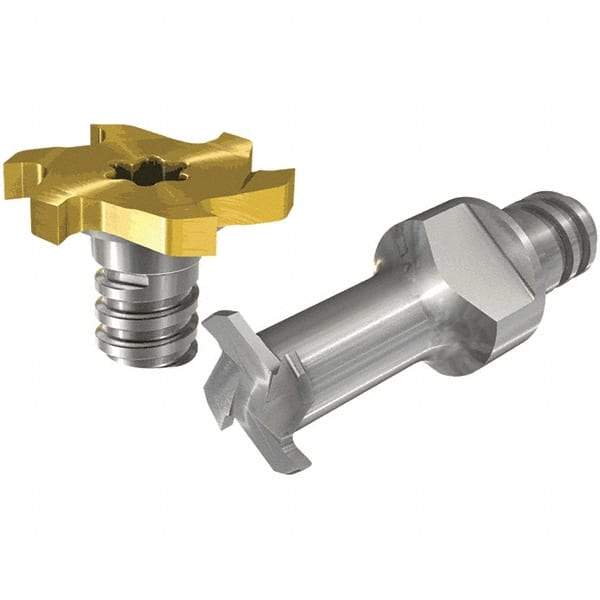

Iscar - MM TS Grade IC928 Carbide T-Slot Milling Tip Insert - TiAlN Finish, 6 Flutes, 10.5mm Cutting Diam, 2mm Depth of Cut, 0.016" Cnr Rad
Item #: 35654417
Brand: Iscar
Model #: 5606315
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM TS |
| Milling Tip Type | T-Slot |
| Material | Carbide |
| Cutting Diameter (mm) | 10.50 |
| Cutting Diameter (Decimal Inch) | 0.4130 |
| Manufacturer's Grade | IC928 |
| Depth of Cut (mm) | 2.00 |
| Depth of Cut (Decimal Inch) | 0.0790 |
| Number of Flutes | 6 |
| Coating | TiAlN |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Thread Size | T04 |
| Style | MM TS105-N20D-06T04 928 |
| Manufacturers Catalog Number | MM TS105-N20D-06T04 928 |
