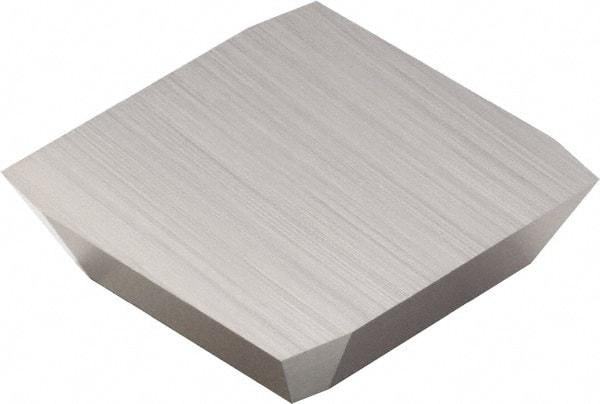

Sandvik Coromant - SFA42 Grade H10 Carbide Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle
Item #: 35587641
Brand: Sandvik Coromant
Model #: 5749507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SFA |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Length (mm) | 9.60 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SFAN 12 03 EF R H10 |
