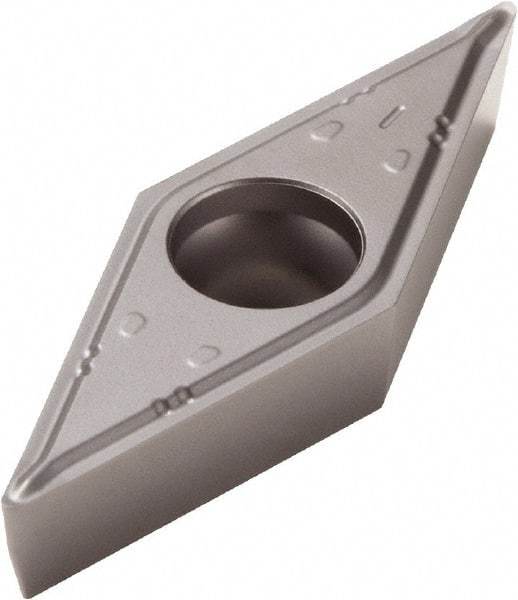

Seco - VBMT332 F1 Grade TP1020 Cermet Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 35562339
Brand: Seco
Model #: 66924
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 332 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | TP1020 |
| Coating | Uncoated |
| Material Grade | C7 |
| Chip Breaker | F1 |
| Hole Diameter (mm) | 0.17 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
