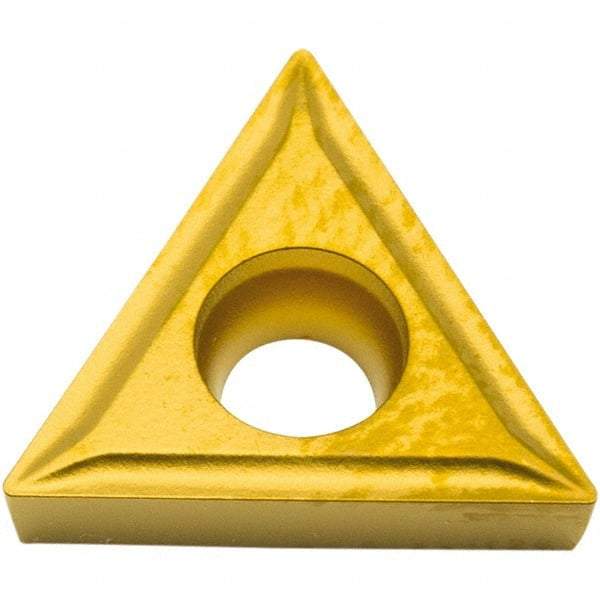

Parlec - TCMT113120 G Grade C2 Carbide Boring Insert - Uncoated, 60° Triangle, 7° Relief Angle, 1/4" Inscr Circle, 0.094" Thick, 0.031" Corner Radius
Item #: 35456771
Brand: Parlec
Model #: T113120C2G
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TCMT |
| Insert Size | 113120 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | C2 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating | Uncoated |
| Chipbreaker | G |
| Hole Diameter (Decimal Inch) | 0.1080 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
