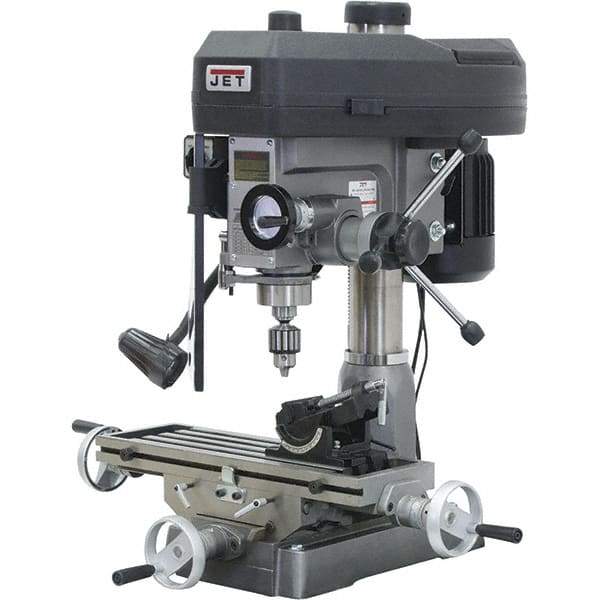

Jet - 1 Phase, 14-1/2" Swing, Step Pulley Mill Drill Combination - 23" Table Length x 7-1/2" Table Width, 14" Longitudinal Travel, 1 hp, 115/230 Volts
Item #: 35295237
Brand: Jet
Model #: 350132
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Swing Distance (Inch) | 14-1/2 |
| Phase | 1 |
| Table Length (Inch) | 23 |
| Table Width (Inch) | 7-1/2 |
| Longitudinal Travel (Inch) | 14 |
| Minimum Spindle Speed (RPM) | 110.00 |
| Maximum Spindle Speed (RPM) | 2500.00 |
| Machine Type | Mill Drill Combination |
| Power Down Feed | No |
| Spindle Taper Size | R8 |
| Voltage Tolerance | 115/230 |
| Quill Diameter (Inch) | 2-7/16 |
| Maximum Spindle to Table Distance (Inch) | 15 |
| Number of T-Slots | 4 |
| T-Slot Size (Inch) | 9/16 |
| Horsepower (HP) | 1.00 |
| Voltage | 115/230 |
| Overall Length (Decimal Inch) | 38.0000 |
| Overall Height (Inch) | 37-1/2 |
| Overall Depth (Inch) | 42 |
| Includes | Mill Drill; Newall DP500 DRO |
