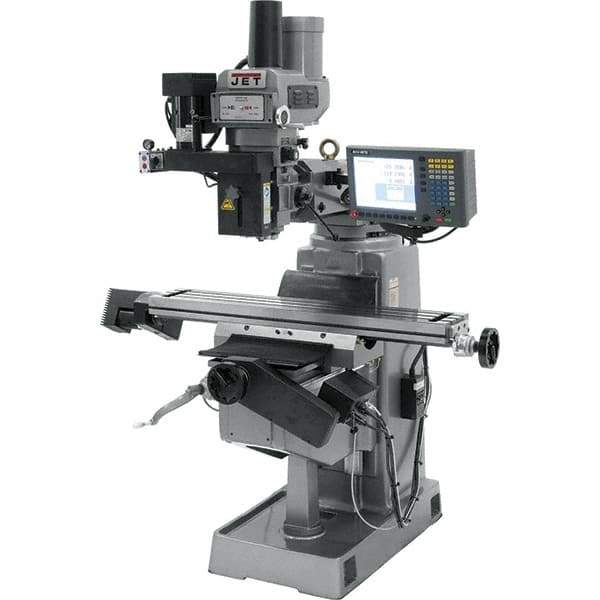

Jet - 9" Table Width x 49" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 35294594
Brand: Jet
Model #: 690576
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Cross Travel (Decimal Inch) | 12.6250 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 4500.00 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Includes | 3-Axis Acu-Rite G-2 MILLPWR CNC |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Maximum Spindle to Table Distance (Decimal Inch) | 20.7500 |
| Horsepower (HP) | 3.00 |
| Voltage | 230 |
| Warranty | 2 Year |
