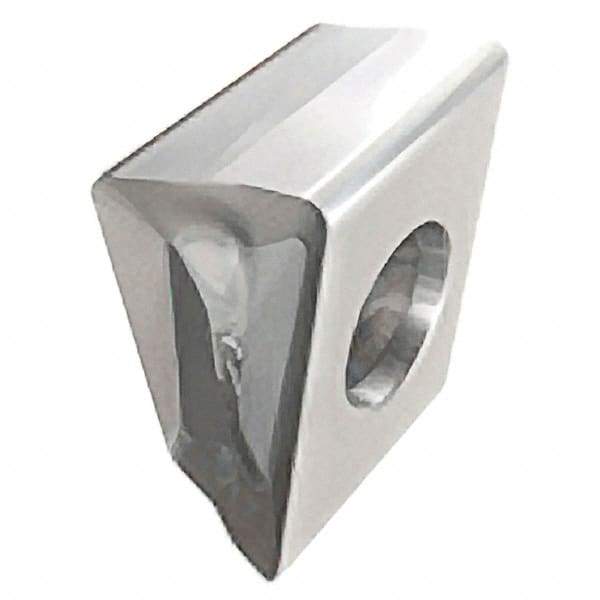

Iscar - T490 LNAR1607 P Grade IC07 Carbide Milling Insert - Uncoated, 15.9mm Thick, 0.8mm Corner Radius
Item #: 35164664
Brand: Iscar
Model #: 5666821
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNAR |
| Insert Size | 1607 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC07 |
| Coating | Uncoated |
| Width (mm) | 7.05 |
| Width (Decimal Inch) | 0.2780 |
| Length (mm) | 17.05 |
| Length (Decimal Inch) | 0.6710 |
| Thickness (mm) | 15.90 |
| Thickness (Decimal Inch) | 0.6260 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Shape | Tangential |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNAR 1607PN-R-P |
| ISO Number | T490 LNAR 1607PN-R-P |
| ANSI Number | T490 LNAR 1607PN-R-P |
