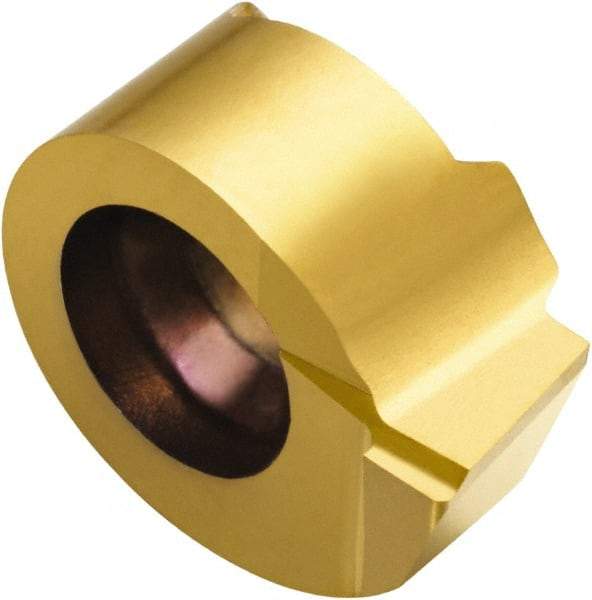

Sandvik Coromant - MB..T020Grade 1025 Carbide Boring Insert - TiAlN+TiN Finish, 110° Included Angle, 0.2mm Corner Radius
Item #: 35017219
Brand: Sandvik Coromant
Model #: 6879585
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB..T020 |
| Manufacturer's Grade | 1025 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | TiAlN+TiN |
| Length (mm) | 4.59 |
| Length (Decimal Inch) | 0.1807 |
| Hole Diameter (mm) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Rake | Positive |
| Rake Angle | 15 |
| Included Angle | 110 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Coating Process | PVD |
| Series | CoroCut MB |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
