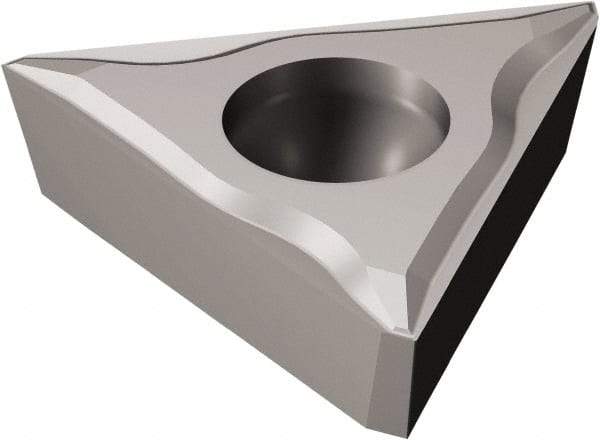

Sandvik Coromant - TCEX220 F Grade 5015 Cermet Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.2mm Corner Radius
Item #: 35001437
Brand: Sandvik Coromant
Model #: 5752272
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCEX |
| Insert Size | 220 |
| Material | Cermet |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | F |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCEX 11 03 02L-F 5015 |
| Lead Angle | 92.000 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 10.54 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Shape | Triangle |
