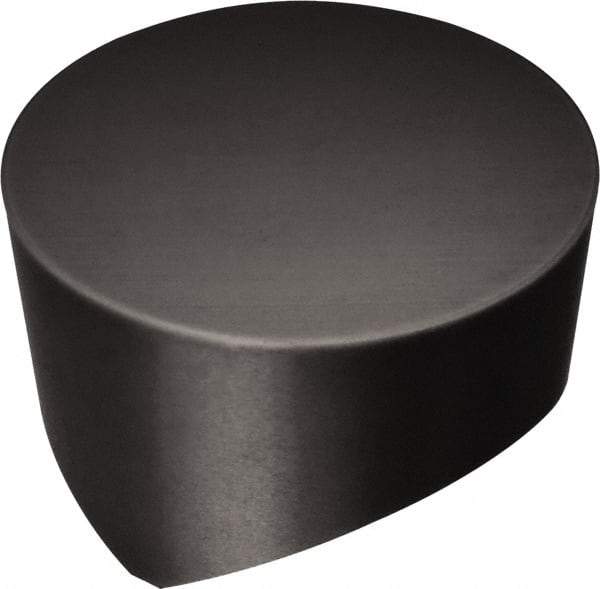

Sandvik Coromant - RCGX35 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 3/8" Inscr Circle, 5/16" Thick
Item #: 34998930
Brand: Sandvik Coromant
Model #: 5740057
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 35 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RCGX 09 07 00T07015 650 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Round |
