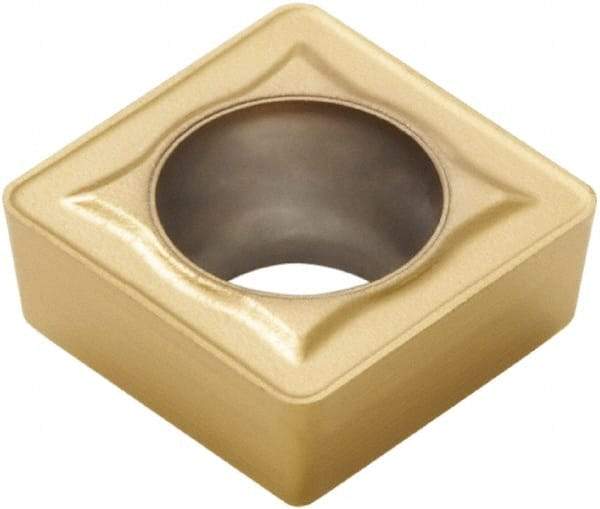

Seco - SCGX06 Grade T250D Carbide Indexable Drill Insert - TiAlN Finish, Square, 1/4" Inscribed Circle
Item #: 34984773
Brand: Seco
Model #: 71439
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 06 |
| Material | Carbide |
| Manufacturer's Grade | T250D |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Relief Angle | 7 |
| Coating | TiAlN |
| Coating Process | PVD |
