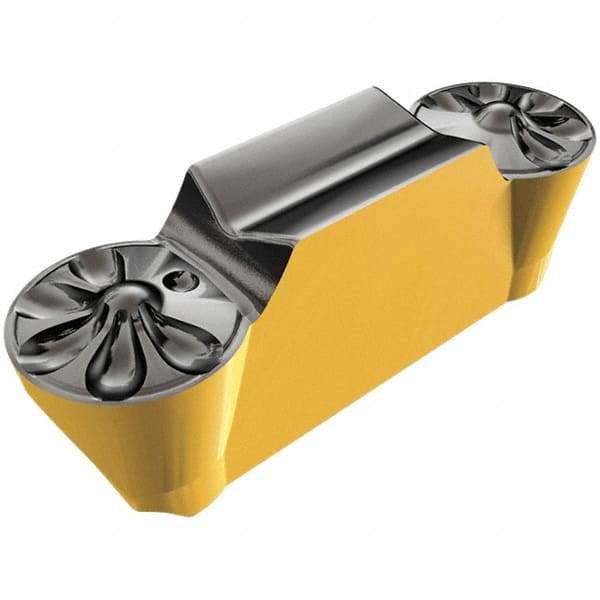

Iscar - 3015GEMI Grade IC808, 3mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, 1.5mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 33738550
Brand: Iscar
Model #: 6411879
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEMI |
| Insert Size | 3015 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 8 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Series | Cut Grip |
| Rake Angle | 8 |
| ISO Number | GEMI 3015Y IC808 |
| Manufacturers Catalog Number | 6411879 |
| Overall Width (mm) | 2.20 |
| Overall Width (Decimal Inch) | 0.0870 |
