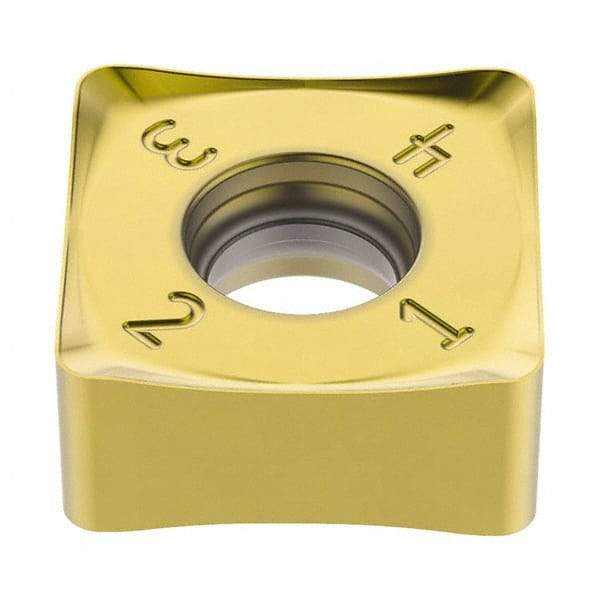

Seco - SNMU120410 M10 Grade F40M Carbide Milling Insert - TiAIN/TiN Finish, 13/64" Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 33672742
Brand: Seco
Model #: 48150
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMU |
| Insert Size | 120410 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | F40M |
| Coating | TiAIN/TiN |
| Width (mm) | 12.00 |
| Length (mm) | 12.00 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Inch) | 13/64 |
| Thickness (Decimal Inch) | 0.2031 |
| Corner Radius (mm) | 1.00 |
| Rake Angle | 20 |
| Rake | Negative |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M10 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | Chamfered & Honed |
| ISO Number | SNMU120410TN-M10 |
