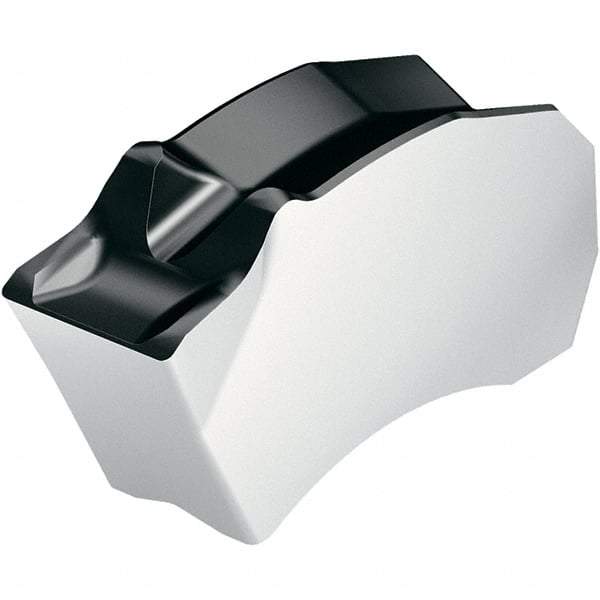

Walter - CE4 Grade WKP23S, 8mm Cutting Width Cutoff Insert - 0.8mm Corner Radius, TiCN+Al2O3+(TiCN) Finish
Item #: 33579954
Brand: Walter
Model #: 6677512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | WKP23S |
| Coating | TiCN+Al2O3+(TiCN) |
| Series | SX-E-CE4 |
| Relief Angle | 23 |
| Chipbreaker | CE4 |
| Coating Process | CVD |
| Overall Length (mm) | 17.40 |
| Overall Length (Decimal Inch) | 0.6850 |
| Corner Radius (Decimal Inch) | 0.031 |
| Corner Radius (mm) | 0.8 |
| Insert Hand | Neutral |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
| Manufacturers Catalog Number | SX-8E800N08-CE4 WKP23S |
